Bag Riders Easy-Install Management Board

Bag Riders Easy-Install Management Board

Name: Bag Riders Easy-Install Management Board
Brand: Bag Riders
SKU: Bag Riders Easy-Install Management Board
Price: 120 USD
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Be the first to review this product

$120.00

Manufacturer Part Number:

BR27334

Qty:

Saving this for later? Add to Wish List

Selections

Easy-Install Board

Looking to get a jump-start on your air ride install? Our Bag Riders easy-install management board will help speed up the trunk install for your new air management. You won't need to run to the hardware store for wood and mounting hardware, or the fabric store for carpeting and glue. Our MDF mounting board is laser cut to 16x34", extra thick at 3/4", and comes professionally carpeted so you can just focus on mounting your management.

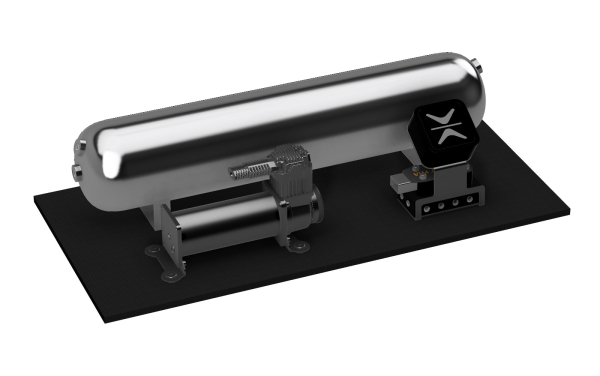

Board Layout Template

This option will include the template for a single compressor layout as well as all necessary mounting hardware for that configuration. When used with a manifold pedestal, all components are mounted into threaded inserts from the top to make servicing components as easy as possible.

Manifold pedestal is required for top-down mounting into the included inserts.
Manifolds without pedestals will need to be mounted from underneath the board.

Stock: In Stock

Make a Selection

Manifold Pedestal Mount (Recommended)

None for me, thanks!

Stock: Make a Selection

Make a Selection

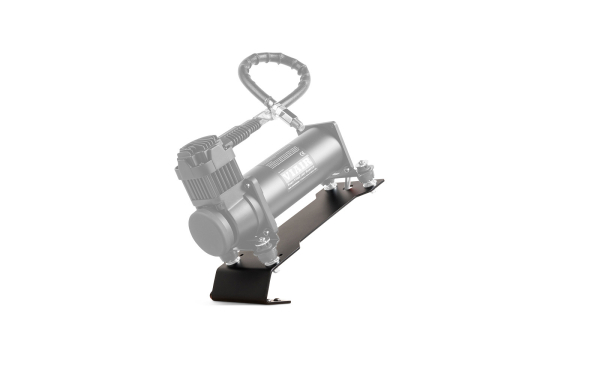

Compressor Pedestal Mount

None for me, thanks!

Stock: Make a Selection

Make a Selection

Details

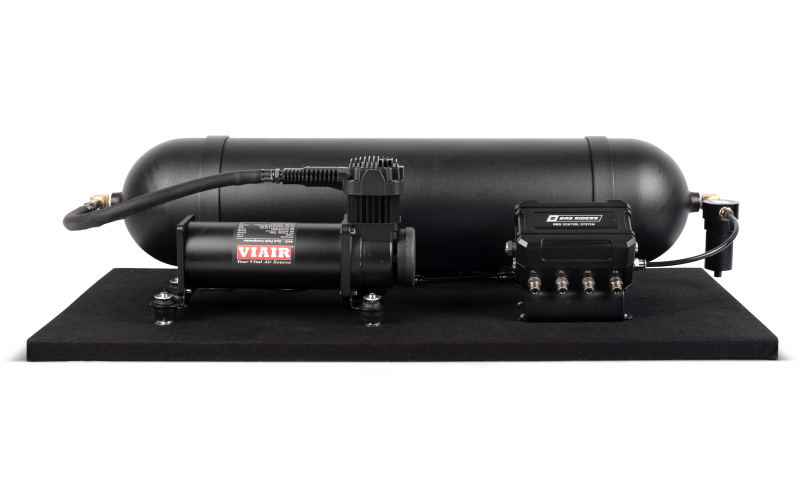

Looking to get a jump-start on your air ride install? Skip the extra trips to the hardware store for wood and the fabric store for carpeting. The Bag Riders Easy-Install Management Board is designed to significantly speed up your trunk installation so you can focus strictly on mounting your air management system.

Laser-cut to a versatile 16" x 34" and made from extra-thick 3/4" MDF, this board arrives professionally carpeted and ready to drop in. When paired with a manifold pedestal, all components are cleanly mounted from the top down into threaded inserts, making future servicing a breeze.

Compatibility:

Tanks: Bag Riders 4 Gallon, 5 Gallon, and Smoothie tanks
Compressors: Viair 444c & 485c* compressors - both with and without isolators
Manifolds: Bag Riders PRO, AccuAir VU4, and Air Lift ALP4, 3P & 3H manifolds

*485c Compressors include 1/4"" to 3/8" expander bushings when purchased in one of our management packages, and are necessary to connect to the street elbows included in this kit. If you purchased your kit elsewhere or no longer have those bushings, they can be found here.

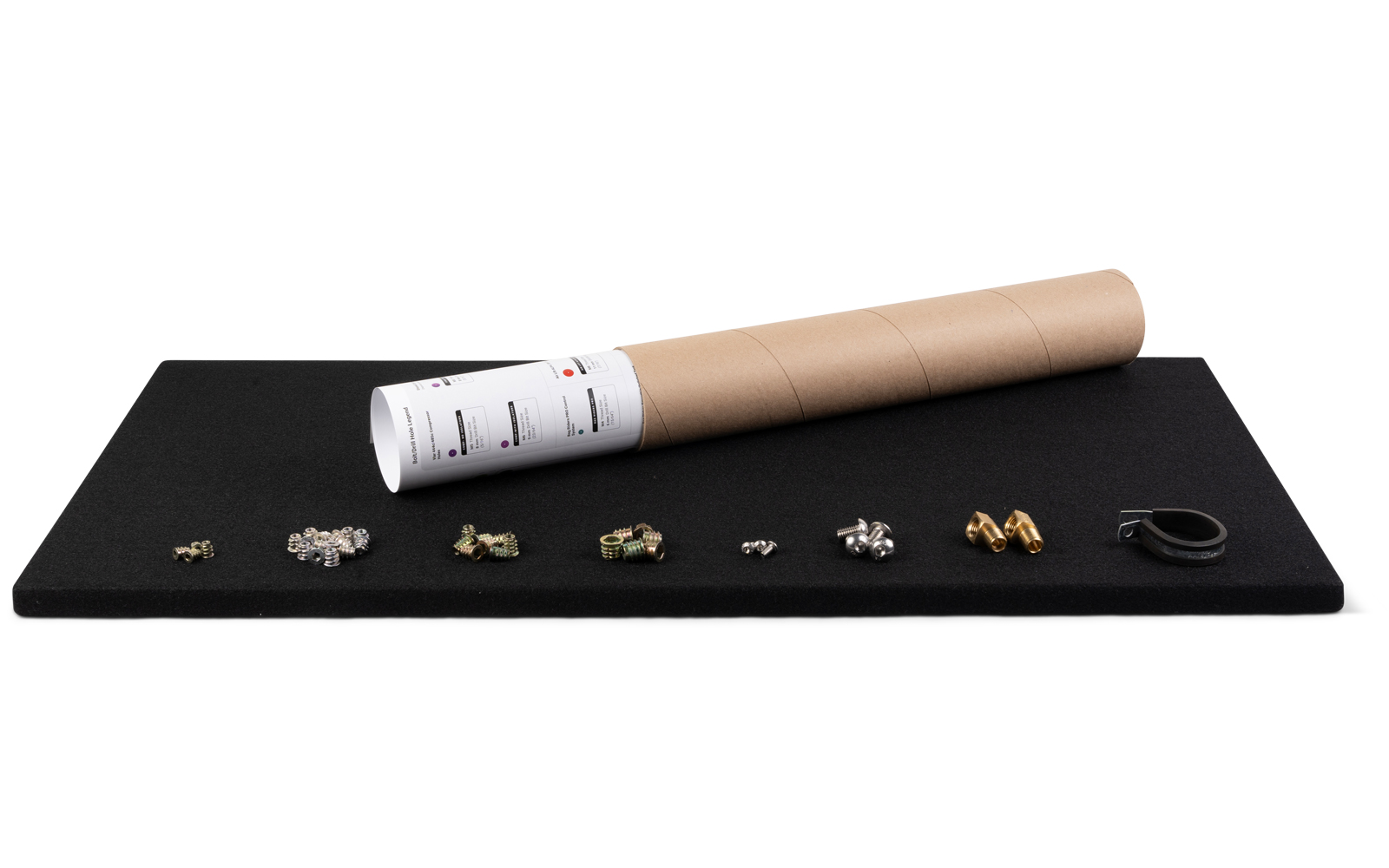

Includes:

(1) High quality template - for either single OR dual compressor layout
(4) M10 threaded inserts - for air tank
(4) M10 button bolts - for air tank
(4) OR (8) M6 threaded inserts - for compressor(s) WITH isolators**
(4) OR (8) M5 threaded inserts - for compressor(s) WITHOUT isolators**
(2) M8 threaded inserts - for Air Lift ALP4/3H/3P pedestal***
(4) M5 threaded inserts - for AccuAir VU4 pedestal***
(4) M4 threaded inserts - for Bag Riders PRO pedestal***
(3) M5 threaded inserts - for wiring clamp & relay mounts
(3) M5 button bolts - for wiring clamp & relay mounts
(1) OR (2) 1/4" brass street elbow(s)
(1) 1&1/2" clamp for wiring management

**Any compressor or isolator mounting bolts are included with those components
***Pedestal mounting bolts are included with the pedestal

Necessary tools:

12mm (15/32") drill bit
8mm (5/16") drill bit

Optional tools:

If using compressor isolators - 9mm (23/64") drill bit
If using ALP manifold - 11mm (7/16") drill bit
If using PRO manifold - 6mm (15/64") drill bit

Management components NOT included
